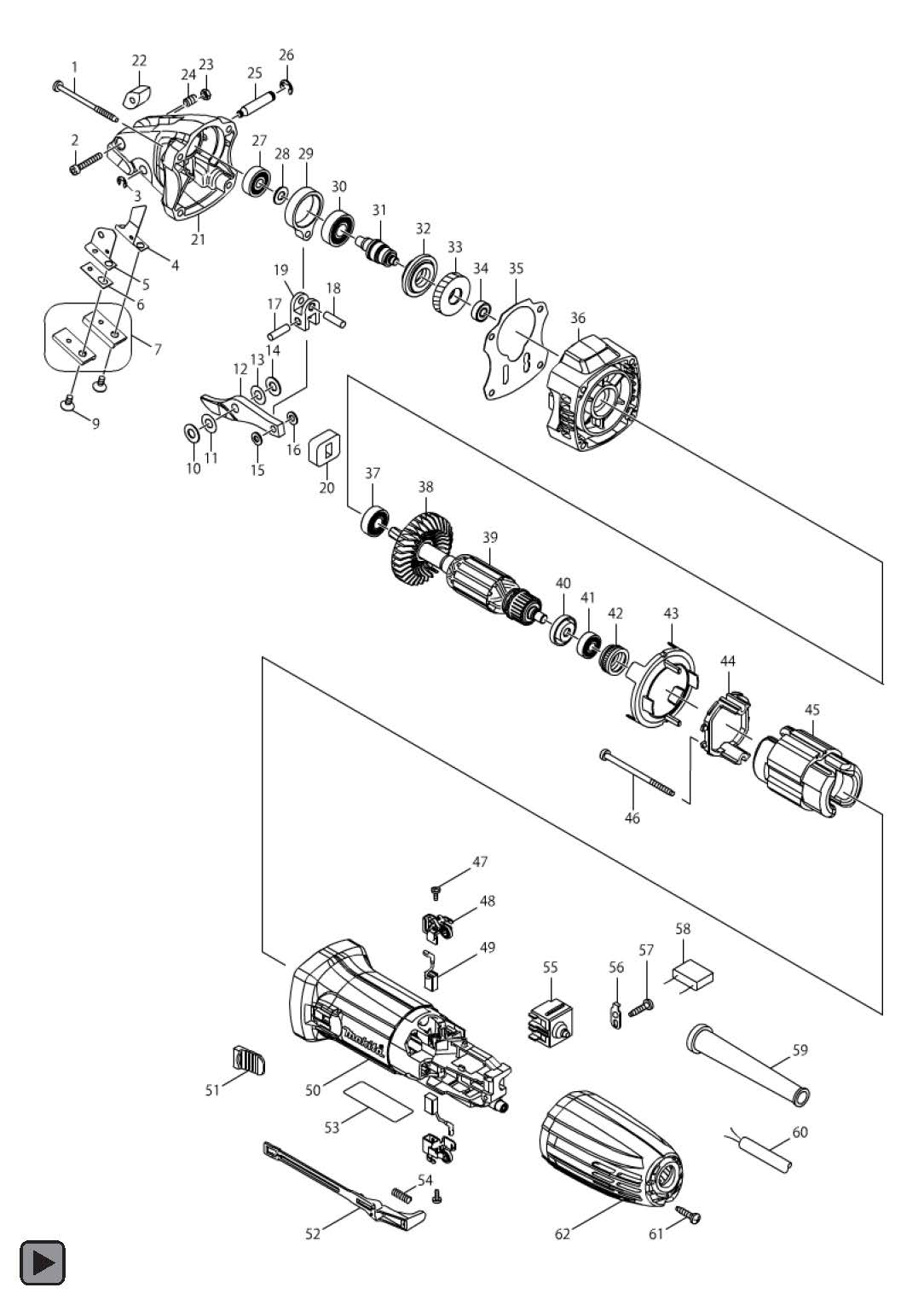

| Broj dela | Šifra dela | Naziv dela |
|---|---|---|
| 1 | 266091-3 | TAPPING SCREW 4X50 |
| 2 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 |
| 3 | 961011-9 | STOP RING E-4 |
| 4 | 346131-4 | SLIP PLATE R |
| 5 | 343480-0 | SLIP PLATE L |
| 6 | 343481-8 | SPACER |
| 7 | 792533-6 | SIDE BLADE SET |
| 9 | 251951-2 | HEX. SOCKET HEAD BOLT M5X10 |
| 10 | 261065-9 | TEFLON WASHER 7 |
| 11 | 253338-4 | THIN WASHER 7 |
| 12 | 792534-4 | CENTER BLADE |
| 13 | 253338-4 | THIN WASHER 7 |
| 14 | 261065-9 | TEFLON WASHER 7 |
| 15 | 267010-2 | FLAT WASHER 5 |
| 16 | 267010-2 | FLAT WASHER 5 |
| 17 | 256155-1 | PIN 5 |
| 18 | 256155-1 | PIN 5 |
| 19 | 331329-6 | LINK |
| 20 | 423118-4 | DUST COVER |
| 21 | 140506-7 | CRANK HOUSING COMPLETE |
| 22 | 325727-4 | BLOCK |
| 23 | 252083-8 | HEX. LOCK NUT M4-7 |
| 24 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X10 |
| 25 | 256733-7 | PIN 7 |
| 26 | 961012-7 | STOP RING E-6 |
| 27 | 211027-7 | BALL BEARING 627ZZ |
| 28 | 253133-2 | FLAT WASHER 7 |
| 29 | 331273-7 | ROD |
| 30 | 210067-2 | BALL BEARING 6000ZZ |
| 31 | 325948-8 | CRANK SHAFT |
| 32 | 325949-6 | SEALING SCREW |
| 33 | 227731-8 | HELICAL GEAR 40 |
| 34 | 210033-9 | BALL BEARING 696ZZ |
| 35 | 442161-4 | GASKET |
| 36 | 140507-5 | GEAR HOUSING COMPLETE |
| 37 | 210005-4 | BALL BEARING 608DDW |
| 38 | 240076-7 | FAN 56 |
| 39 | 517674-5 | ARMATURE ASS'Y 240V |
| INC. 37,38,40,41 | ||
| 40 | 681636-0 | INSULATION WASHER |
| 41 | 210062-2 | BALL BEARING 607ZZ |
| 42 | 421868-5 | LABYRINTH RUBBER RING 19 |
| 43 | 450796-7 | BAFFLE PLATE |
| 44 | 452073-3 | SPACER |
| 45 | 623549-9 | FIELD |
| 46 | 266004-4 | TAPPING SCREW 4X70 |
| 47 | 265954-0 | TAPPING SCREW BIND PT3X8 |
| 48 | 643839-4 | BRUSH HOLDER 6X9 |
| 49 | 194722-3 | CARBON BRUSH CB-459 |
| 50 | 450795-9 | MOTOR HOUSING |
| 51 | 418016-5 | SWITCH KNOB |
| 52 | 450797-5 | SWITCH LEVER |
| 53 | 868086-8 | JS1601 NAME PLATE |
| 54 | 233121-5 | COMPRESSION SPRING 4 |
| 55 | 650621-4 | SWITCH PS10 |
| 56 | 687682-1 | STRAIN RELIEF |
| 57 | 265995-6 | TAPPING SCREW 4X18 |
| 58 | 638739-1 | CAPACITOR UNIT |
| 59 | 682566-8 | CORD GUARD 10 |
| 60 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 |
| 61 | 265995-6 | TAPPING SCREW 4X18 |
| 62 | 450794-1 | REAR COVER |
| 762013-6 | THICKNESS GAUGE | |
| 783201-2 | HEX. WRENCH 3 |
